Deburring, cleaning, surface preparation, texturizing and finishing are also achieved through glass bead blasting. Metal surfaces often need to be cleaned, textured or polished for aesthetic and functional purposes. In order to keep the surfaces free from iron contamination of steel blasting media while achieving a smooth, satin finish, glass bead blasting becomes a desirable metal surface preparation technique. This technique is economical, reliable and it does not damage metal parts or their surfaces during the cleaning process. In many cases, traditional blasting media abrades the surface which does not happen with Micro-Blast beads.
1. Overview & Core Concept

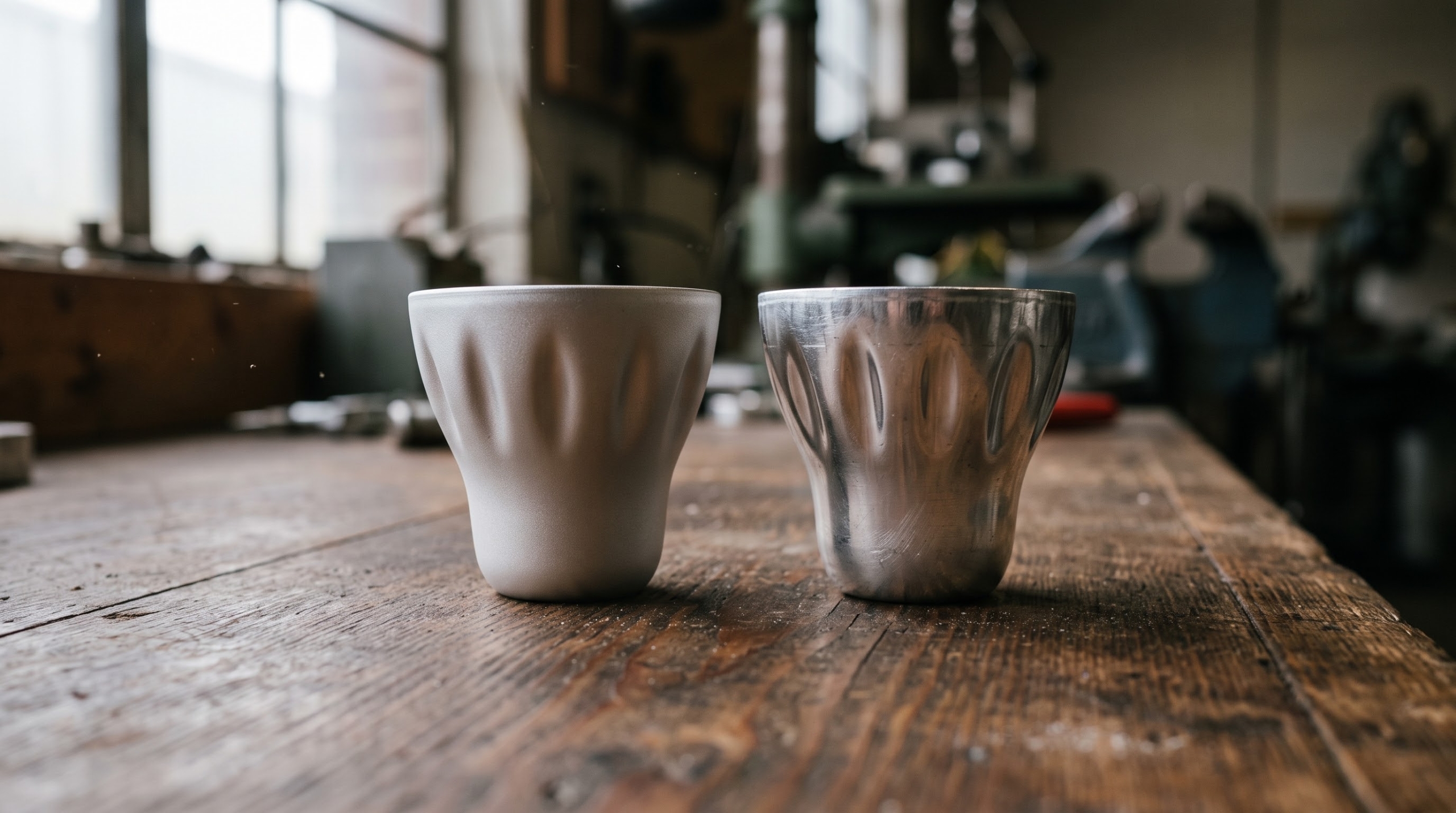

Glass bead blasting uses small, round glass beads as a non-aggressive blasting media to clean, compact, and refine metal surfaces. Unlike sharp abrasives, it does not cut into the base material; instead, it rolls across the surface to produce a smooth, clean, satin-like matte finish.
Primary Materials: Stainless steel, aluminum, and other high-grade metals.
Main Purpose: Visual refinement, hygiene improvement, and surface consistency rather than heavy stock removal.
2. How It Works
Mechanism: Compressed air propels fine glass beads. The round impact creates a polishing and micro-peening effect.
Controlled Environment: Typically performed in specialized blast cabinets/rooms to ensure operator safety and allow media recovery, cleaning, and reuse.
Key Process Variables: Air pressure, nozzle distance, blasting angle, operator technique, and bead size directly dictate the final finish.
3. Key Applications
- Removal of light rust, oils, contamination, and welding/bending discolorations.
- Achieving a uniform matte or satin finish on stainless steel.
- Enhancing surface cleanability and reducing dust/dirt adhesion for hygienic environments (e.g., food processing and medical industries).
- Surface strengthening via peening effects and pre-treatment for powder coating.
4. Glass Bead Blasting vs. Sandblasting
Traditional Sandblasting: Designed for aggressive cleaning, heavy rust removal, and creating a rough anchor profile for thick paint coatings.
Glass Bead Blasting: Focuses on micro-refinement, keeping the base material completely intact while delivering a neat, flawless final aesthetic.
5. Technical Specifications & Guidelines
Operating Pressure: Best maintained at a low pressure between 2.5 to 5 bar to protect media integrity, prevent breakdown, and ensure high control on stainless steel.
Bead Size: Generally ranges between 100 to 200 µm for standard finishing; finer grades are applied for strict medical/food-grade roughness criteria.
Surface Roughness (Ra): Standard low-pressure processing achieves approximately Ra 1.5 µm. For high-hygiene sectors, achieving lower thresholds is critical.
6. Advanced Technology: The ROTIN Blasting Principle
The Challenge: Standard nozzles often create a narrow hotspot, risking visible streaks or uneven overlapping paths on large sheets.
The ROTIN Solution: Utilizes a rotating insert in front of the nozzle to widen the pattern and distribute impact evenly.
Benefits: Delivers a completely spot-free, highly reproducible finish on large stainless steel panels and enables ultra-low roughness values below Ra 0.8 µm, making it the ultimate choice for critical architectural, food, and medical applications.
